Focus Beamprofile

focus of beam

Characters

Diameter: 5µm to 50µm
Power: 50mW to 500mW
1030nm,515nm,343nm
Beam Position: +/- 0.2 µm
Beam Quality-M² (%): +/-5%

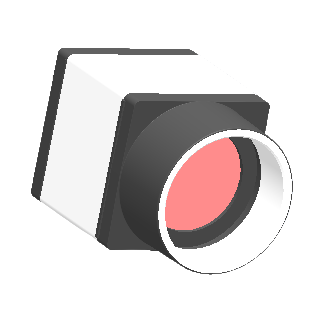

Beamprofile

raw beam

Characters

Diameter: 1mm to 7mm
Power: 50mW to 500mW
1030nm,515nm,343nm
Beam Position: +/- 1.0 µm
Beam Quality-M² (%): +/-5%

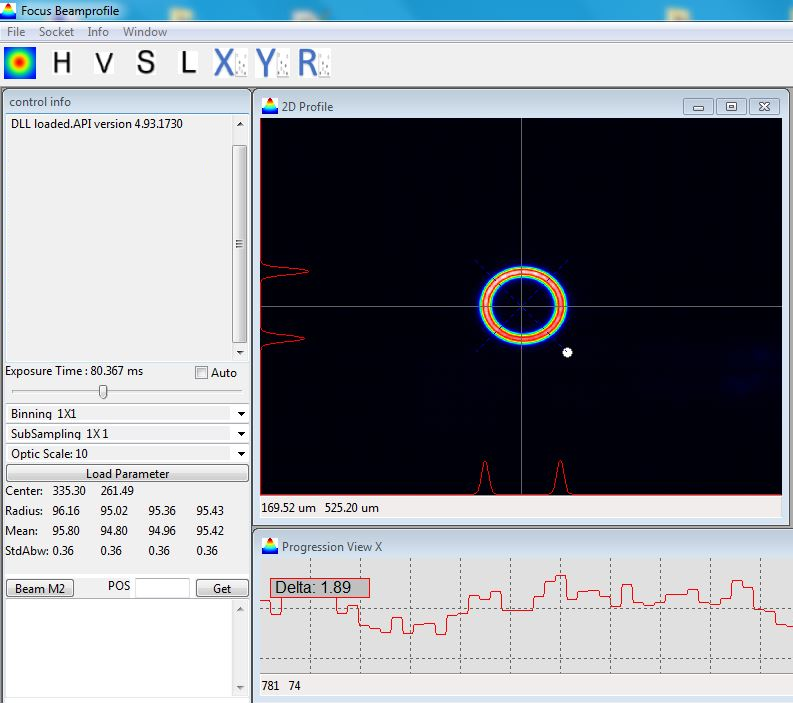

Software

Beamprofile

Short Introduction

2d Beamprofile
Section view
M² Function
HTTP Server

Beam Attenuation

Beam Sampler

The Beam Sampler is designed with double wedge plate to get only the small percentage of power, attenuate is about 0.1%. With the high threshold of Fused Silica is suitable to be used for high power applications.

Neutral Density Filters

ND Filters are available with wide range of opticsl densities (OD). The special Flatness has been used to reduce the distortion of beam wavefront.
